Spherical Copper Powder > Copper Spherical Powder (CUSP40)

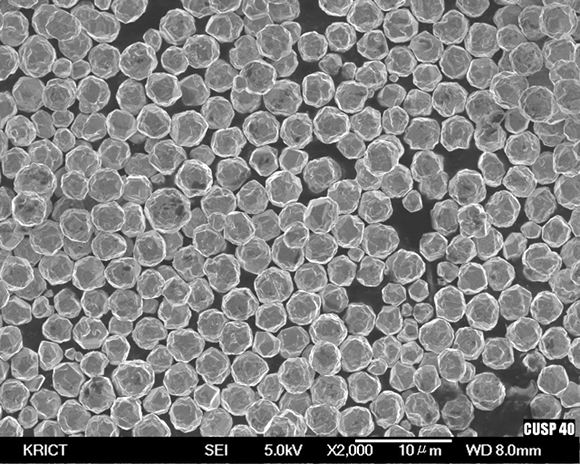

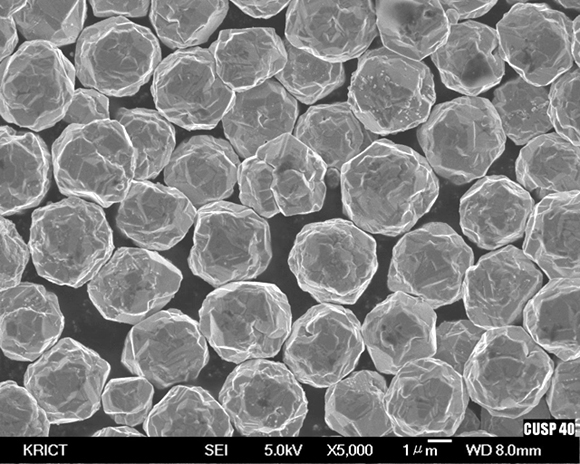

Mean Particle Size(SEM)  4.0 ㎛

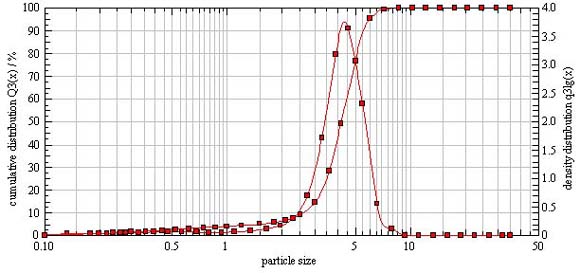

Particle Size Distribution D10 : 2.5㎛  D50 : 4.2~4.7㎛  D90 : 5.7㎛
Target Properties Tap Density : 4.6 g/㎤  BET : 0.55 ㎡/g
  Oxygen (wt%) max. : 0.25
Carbon (wt%) max. : 0.05
Sulphur (wt%) max. : 0.01
Application MLCC termination paste. Thick film hybrid paste. Conductive adhesive.
